USB Extender
EISTouch Digital Podium Models: Which One Fits your Venue?

ICRON RANGER 2304
4-port USB 2.0 extender for multiple peripherals.
Key Features
• Extends USB connections up to 100 metres
• Uses CAT 5e/6/7 cable
• USB 2.0 throughput up to 480 Mbps
• Four USB ports at the remote end
• Supports USB 2.0 and 1.1 devices
• Compatible with USB 3.0 hosts and devices at USB 2.0 speeds
• Plug-and-play operation with no software drivers
• Supports Windows, macOS, Linux, and Chrome OS

ICRON RAVEN 3104 PRO
USB 3.2 extender optimised for cameras and video capture devices.
Key Features
• USB 3.2 Gen 1 data rate up to 5 Gbps
• Extends connections up to 100 metres over CAT 6a/7
• Four USB 3.2 ports
• Supports USB 3.2, 2.0, and 1.1 simultaneously
• Supports all USB transfer types, including isochronous traffic
• Optimised for cameras and video capture devices
• 100/1000 Ethernet pass-through
• No software drivers required

ICRON RAVEN 3104
4-port USB extender for SuperSpeed USB applications.
Key Features
• Extends USB up to 100 metres over CAT 6a/7
• Data rates up to 5 Gbps
• Four USB ports
• Supports USB 3.x, USB 2.0, and USB 1.1 devices
• 100/1000 Ethernet pass-through
• Point-to-point connection
• Plug-and-play operation
• Suitable for conferencing cameras, storage, security, and AV systems

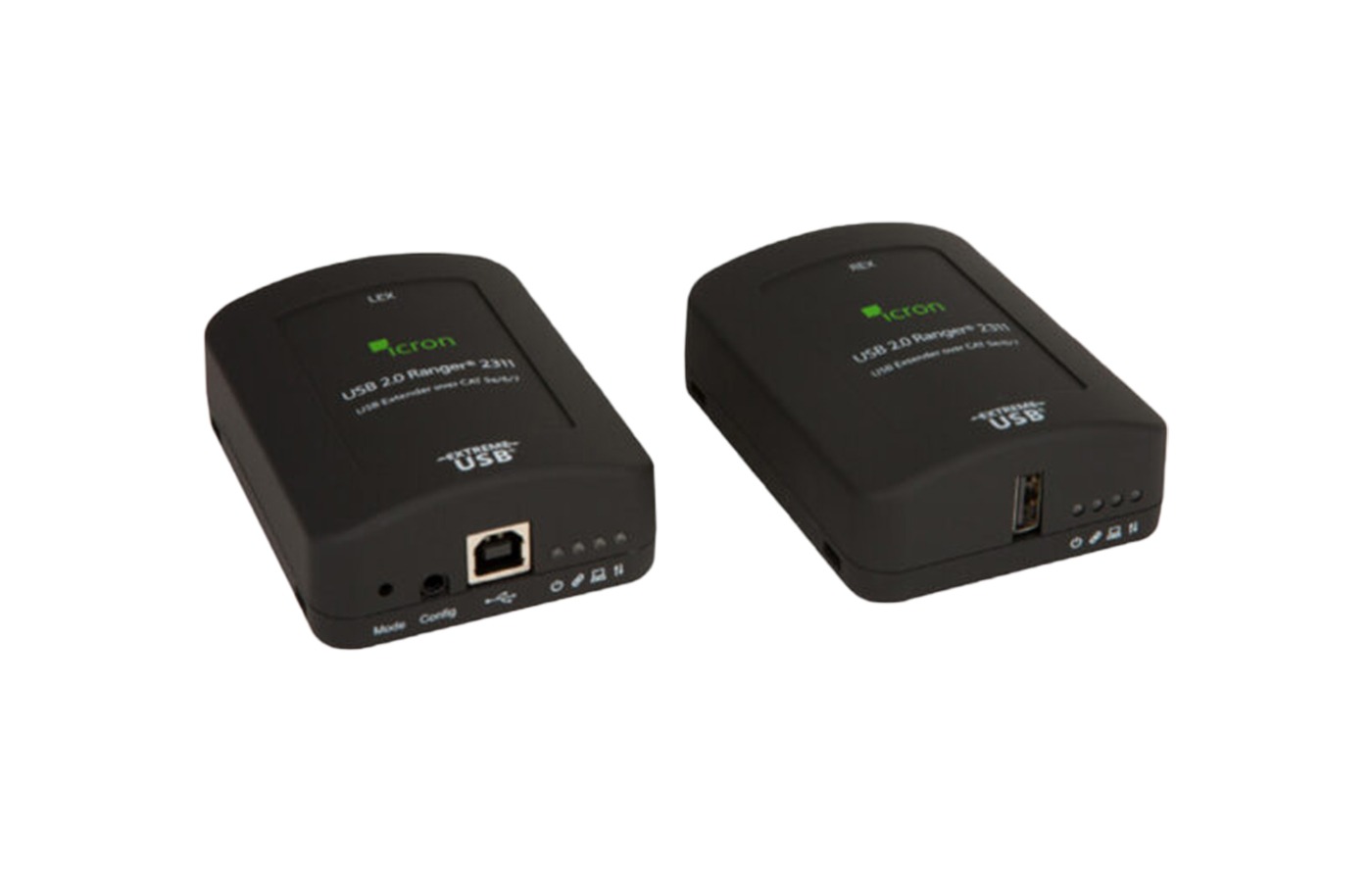

ICRON RANGER 2311
Single-port USB 2.0 extender with flexible power placement.
Key Features
• Extends USB 2.0 up to 100 metres
• Uses CAT 5e/6/7 cable
• Throughput up to 480 Mbps
• Single remote USB port
• Power adapter can be connected at either end
• Supplies up to 1A to the USB port
• Plug-and-play with no software drivers
• Supports Windows, macOS, Linux, and Chrome OS
WHICH USB EXTENDER FITS YOUR SETUP?
Model
USB Support
Ports
Distance
Best Fit
Choose the Raven 3104 Pro where conferencing cameras or video capture devices need high-bandwidth USB extension. The Ranger 2304 suits multi-device USB 2.0 installations, while the Ranger 2311 is a simpler option where only one remote USB device is required.
SUPPORTf
EIS TechInfra Solutions supplies USB extender solutions for professional AV installations, including conference rooms, classrooms, control centres, and large event spaces.
Contact EIS TechInfra Solutions to select the right USB extender for your AV setup.
FAQs
What is a USB extender?
A USB extender allows a USB device to be positioned farther from its host computer than a standard USB cable normally permits, using CAT or other transmission cabling between local and remote extender units.
How far can an Icron USB extender carry a USB signal?
The Icron Ranger 2304, Ranger 2311, Raven 3104, and Raven 3104 Pro listed by EIS support USB extension up to 100 metres, using the specified CAT cable for each model.
What is the difference between the Ranger 2304 and Raven 3104?
The Ranger 2304 supports USB 2.0 speeds up to 480 Mbps, while the Raven 3104 supports SuperSpeed USB connections up to 5 Gbps. Both provide four remote USB ports and extend connections up to 100 metres.
What is different about the Raven 3104 Pro?
The Raven 3104 Pro supports all USB transfer types, including isochronous traffic, and is specifically optimised for conferencing cameras and video capture devices.
Does a USB extender require software or drivers?
No. The Icron models listed here use transparent USB extension and are designed for plug-and-play operation without additional software drivers.
